Product Details



An anti-vibration elastic pad, suitable for:



* VIBRATION CONTROL

* PASSIVE MACHINERY PROTECTION

* EASY TO INSTALL

* SUITABLE FOR LARGE LOADS

* APPLICATIONS

* ANTIVIBRATION SUPPORTS:

* Air-compressors - Air conditioning units – Pumps – Fans – Generator sets – Cutting machines etc.

* FLOATING SUPPORTS:

* Industrial floors – Elevators – Printing machines – Testing machines etc.

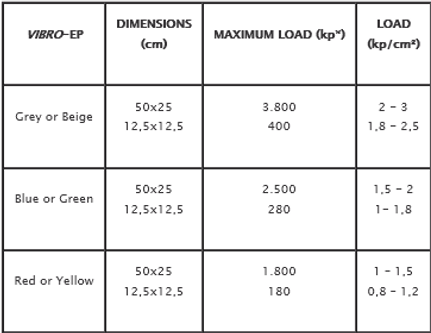

DIMENSIONS:



- 50 x 25 x 2,5 cm - 12,5 x 12,5 x 2,5 cm - 6 x 6 x 2,5 cm





TYPE

- Elastomeric special rubber compound: (grey - blue - red)

- Neoprene: (beige - green - yellow)



Vibro-EP is a product of specialised research and it has been produced in this form since 1989. It is made from first-rate quality elastomeric material combined with special substances for its further improvement.



Its longitudinal holes increase the provided compression and improve vibration absorption. They can be used in multiple layers with the use of steel plate in between, in order to reduce the natural frequency down to 4 Hz
