Product Details



Anti-vibration spring-mounts with lateral restrain



* SUITABLE FOR LOW-FREQUENCY  VIBRATION CONTROL

* ADJUSTABLE HEIGHT AND MACHINE  ALIGNMENT

* PROTECTION FROM LATERAL  DISPLACEMENT

* INTERNAL ELASTIC GASKET FOR  REDUCTION OF RESONANCE

* STEEL CASING FOR GREATER  STRENGTH

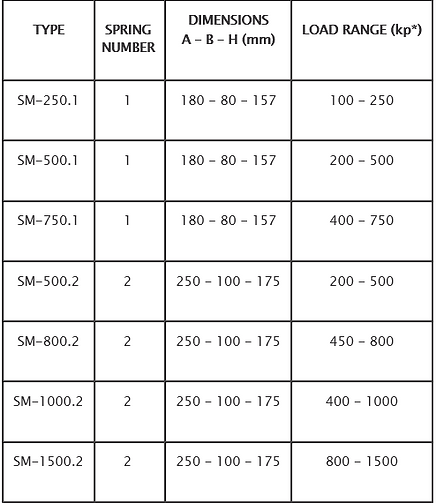

Vibro-SM TYPE 1

Antivibration mounts Vibro-SM are used for low frequency vibration control (rotational machinery 300 RPM upwards).

The casing is made of steel with adequate thickness and is protected from oxidation with a special anticorrosive paint.

The antivibration springs comply with ISO.EN.10270 standards and have a color indication to define the maximum load capacity.

An adjustable height system exists, in order to align the machine.



Vibro-SM TYPE 2

At their base they have a special elastic profile, resistant to outdoor conditions, thus offering better isolation efficiency at high frequencies.

Antivibration mounts Vibro-SM have been designed to face lateral forces (earthquake and wind-pressure protection).

An elastic gasket is interceded between the two vertical reinforcements, to avoid creating a sound-bridge. Also through the friction that is developed, the phenomenon of resonance is decreased, during the beginning and the end of the machine operation.

Vibro-SM can be combined at the bottom with an elastic pad, named Vibro-EP, to ensure the control of vibration at a wider range of frequencies (Vibro-SM Complex).
